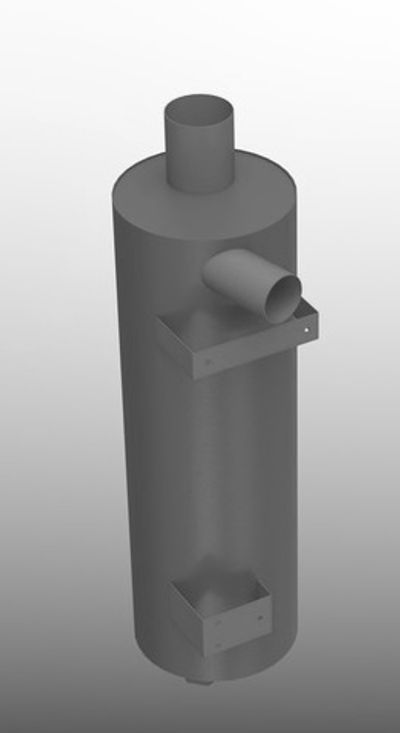

Exhaust Gas Silencers
Designed for internal combustion engines of different power ratings
Material
Carbon steel with an outer protective coat of paint. Special execution available, made of corrosion resistant or heat resistant material.
Noise attenuation
Exhaust Gas Silencers are equally classified into four silencing rating meeting wide range of applications:
- AE10 model for 35/45 dB(A) of noise attenuation;
- AE20 model for 30/35 dB(A) of noise attenuation;
- AE30 model for 25 dB(A) of noise attenuation;
- AE40 model for 15 dB(A) of noise attenuation.
Tailored installation

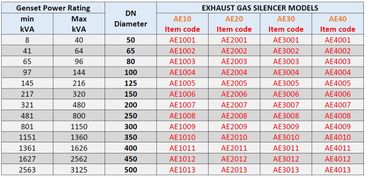

product codes

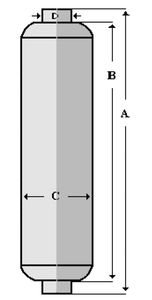

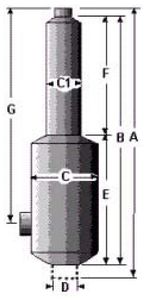

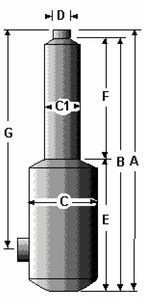

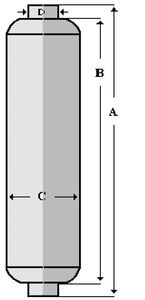

concept drawingS
AE10 series
AE10 series
AE10 series
Optional: alternative configuration available regarding exhaust pipework inlet and outlet.
AE20 series
AE10 series
AE10 series
Optional: alternative configuration available regarding exhaust pipework inlet and outlet.
AE30 series
AE30 series
AE30 series
Optional: alternative configuration available regarding exhaust pipework inlet and outlet.
AE40 series
AE30 series
AE30 series
Optional: alternative configuration available regarding exhaust pipework inlet and outlet.

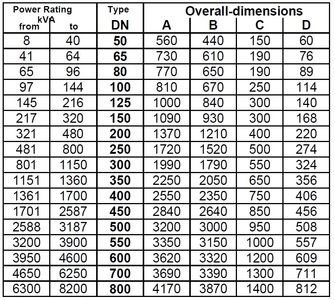

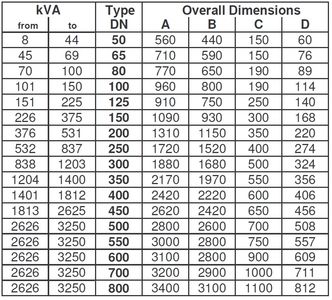

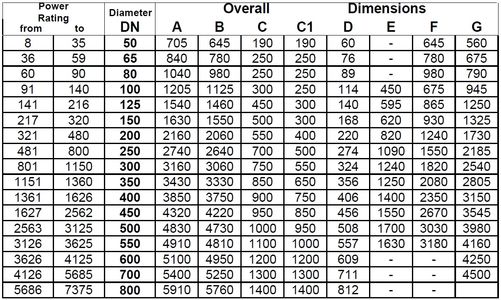

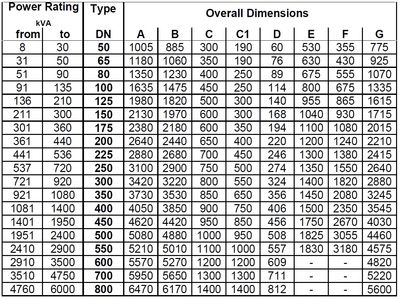

overall dimensions
AE10 series
AE10 series
AE10 series
Note: Each model has been designed based on Generating Set power rating range (indicated on the first two columns).
AE20 series
AE10 series
AE10 series
Note: Each model has been designed based on Generating Set power rating range (indicated on the first two columns).
AE30 series
AE30 series
AE30 series
Note: Each model has been designed based on Generating Set power rating range (indicated on the first two columns).
AE40 series
AE30 series
AE30 series
Note: Each model has been designed based on Generating Set power rating range (indicated on the first two columns).
